DESCRIPTION

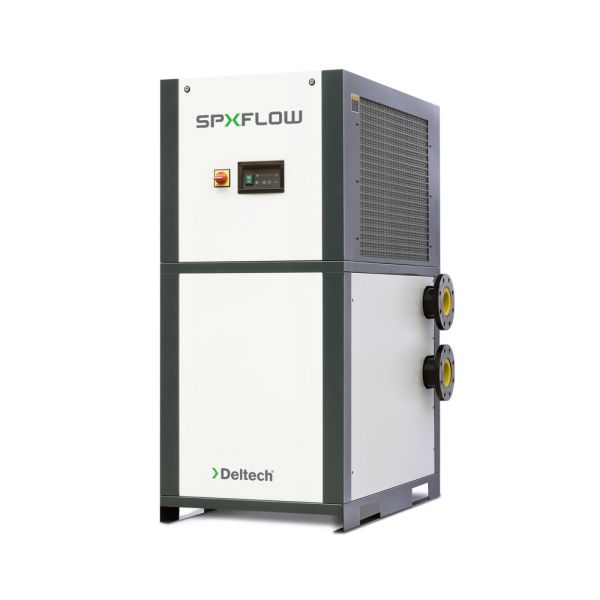

SPX-Deltech HGEN800W, 800 CFM Refrigerated Air Dryer, 3" FLG, 460/3/60, Rated for 150 HP Air Compressors *Water-Cooled*
When we streamlined our HG & HGEN Series non-cycling refrigerated compressed air dryers, our engineers focused on simplicity and reliability. Your input helped build a solution that offers the right combination of technology and simplicity to keep your air system at a dry, 38°F (+3°C) pressure dew point, from 5 through 1200 scfm. These dryers are built for durability, in a space-saving design. Sturdy sheet steel is formed and protected by an epoxy-based powdercoat finish. Plus, Deltech’s industry leading, five year warranty is now available for the HGEN Series.
HGEN800
| MODEL1 | DIMENSIONS (INCHES) | WEIGHT LBS | ||
|---|---|---|---|---|
| H | W | D | ||
| HGEN8003 | 59 | 30 | 42 | 687 |
1 1 = For Filter Pack model, add “-FP” to standard model number. (Example: HGEN75-FP)
Dimensions, weights, and inlet/outlet connections are dryer only and do not include filtration.
Filtration package shipped loose, additional fittings may be required.
2 Rated Flow Capacity – Conditions for rating dryers are in accordance with ISO 7183 (Option A2). Compressed air at dryer inlet: 100 psig (6.7 barg) and 100˚F (38˚C); ambient air temperature: 100˚F (38˚C); operating on 60 Hz power supply.
3 Available in water cooled
At rated conditions, pressure drop is less than 5 psig.
