550 CFM Cycling Refrigerated Air Dryer, 2" NPT 460 Volt, 3-Phase Sized for 100 HP Air Compressors | DFX 5.5

550 CFM Air Dryer for 100 HP Compressors
Model:
DFX 5.5
Order by Phone
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Air Compressor Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Call Toll Free:  866-203-9939



"Over 100 Years of Experience"
Request a Quote
Ships Direct
Be the first to review
Write a Review
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • Product Q & A

DESCRIPTION

550 CFM Cycling Refrigerated Air Dryer, 2" NPT 460 Volt, 3-Phase Sized for 100 HP Air Compressors | DFX 5.5

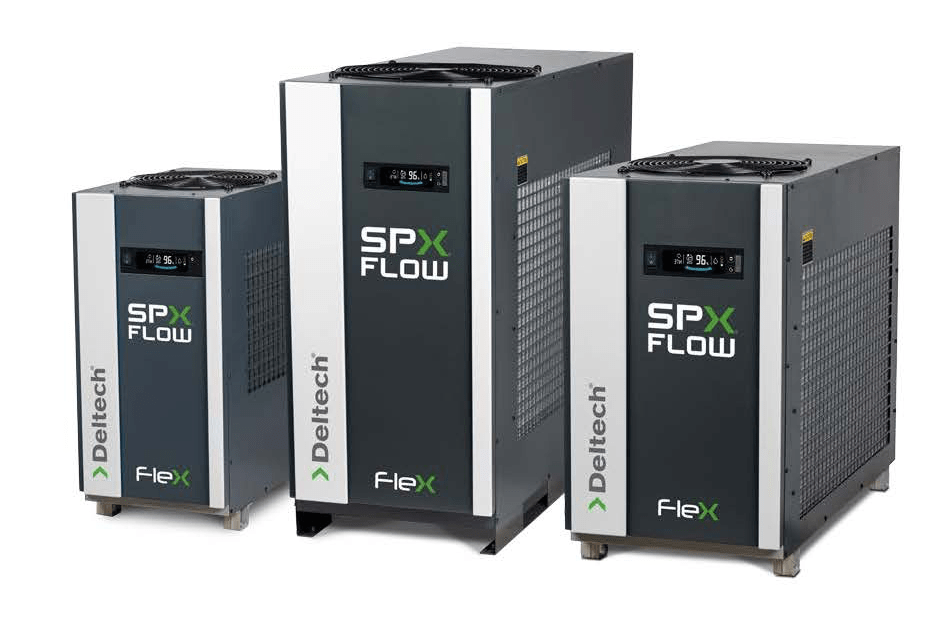

550 CFM Flex Series:  Energy Saving Refrigerated Air Dryer - Perfect for 100 HP Air Compressors



TECH DATA

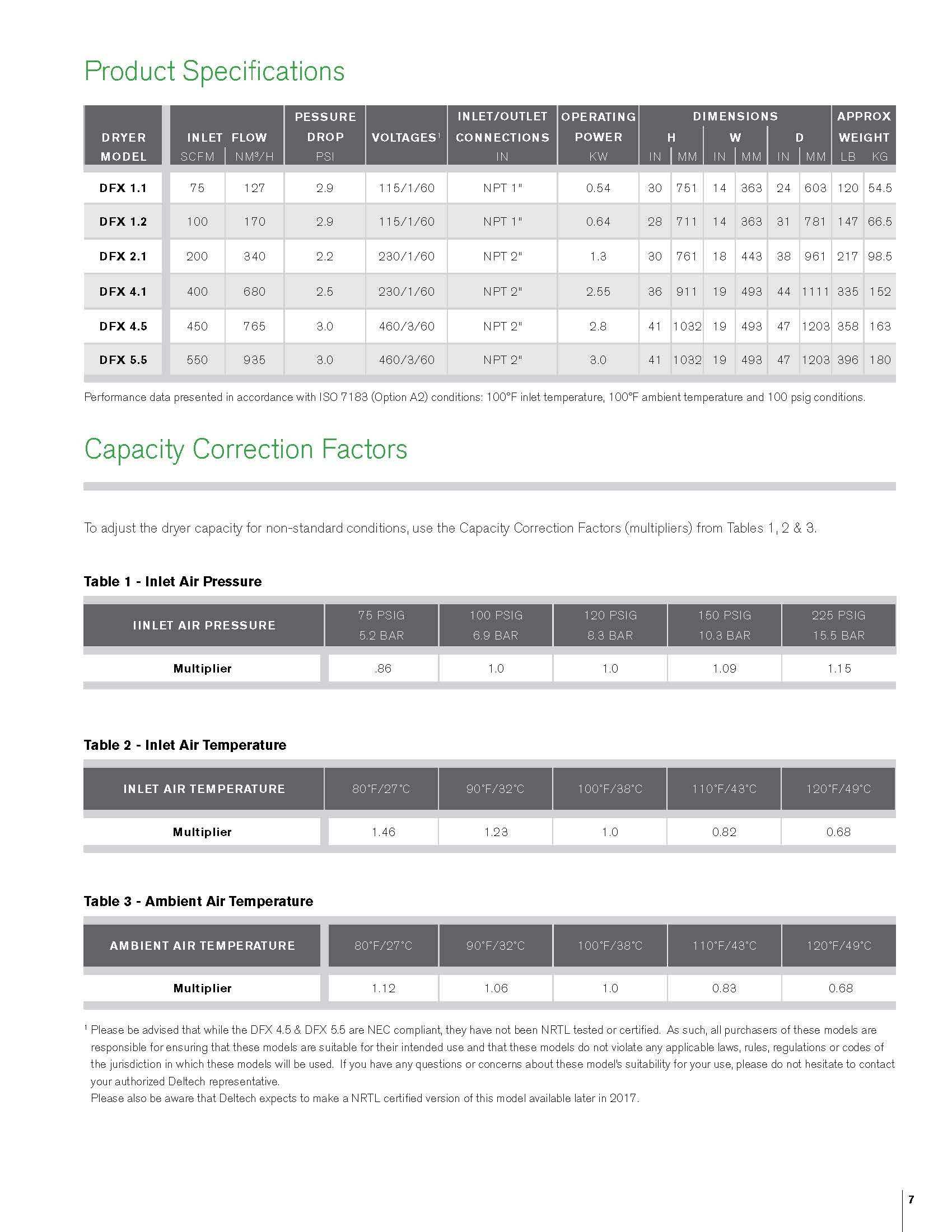

  • Product Specification

    • Capacity (CFM) @ 100/125 PSI
      550 CFM
    • Cooling Type
      Air Cooled
    • Dew Point
      + 39 F
    • Max Pressure (PSI)
      175 PSI
    • Operating Pressure (PSI)
      100 PSI

  • Overview & Technical Details

    • Air Dryer Style
      FLEX Series
    • Power Source/Type
      Electric

  • Connection

    • Connection NPT
      2"

  • Dimensions & Weight

    • Depth (inch)
      49"
    • Height (inch)
      41"
    • Width (inch)
      19"
    • Weight (lbs)
      437.000000

  • Power Requirements

    • 460/480/3/60
      3.0 kW
    • Standard Voltages
      460/3/60

  • Warranty

    • Standard Warranty
      2 Year Factory Warranty
