The Viper™ Gas Rotary Screw Air Compressor allows you to get in and out of the job site fast. Featuring a larger fuel tank to provide six and half hours of runtime at 70% duty cycle gets you through multiple projects, without having to halt production to refuel. A smaller footprint saves valuable trailer or truck bed space for more tools. Low idle RPMs reduce noise, providing a quieter experience for you to work in. As if that wasn’t enough, sensors automatically unload the compressor during startup, and the auto start-stop turns on with air demand. The Viper™ Gas Rotary Screw Air Compressor’s heavy-duty 80 CFM and 100 PSI air pressure make this unit the ideal choice to operate: 90 Lb. jackhammers, 4” piercing tools, pavement breaking, monument engraving, irrigation services, post-pounding, directional boring, and more.
- DESCRIPTION
- TECH DATA
- PRODUCT REVIEWS
- VIDEOS
- Product Q & A
DESCRIPTION

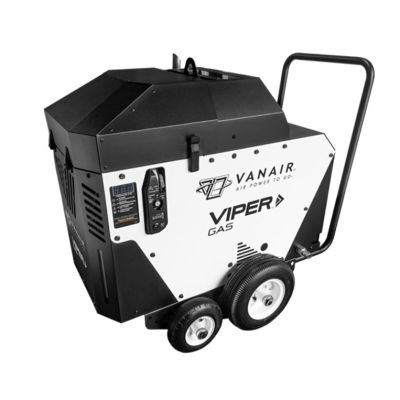

VANAIR Viper GV3H-B80W, 80 CFM @ 100 PSI, 25 HP Gas Driven Rotary Screw Air Compressor with Wheels
Now Smaller, Quieter, and Double the Fuel Capacity!
| MODEL | CAPACITY (CFM) | AIR (PSI) | ENGINE (RPM) | ENGINE (HP) | FUEL CAPACITY |
|---|---|---|---|---|---|
| G60 | 60 | 150 | 3600 | Honda® 25 | 10 Gallon |
| G70 | 70 | 100 | 3600 | Honda® 25 | 10 Gallon |
| G80 | 80 | 100 | 3600 | Honda® 25 | 10 Gallon |
Compressor Dimensions (In.) – 39L x 21W x 30H
Compressor Dimensions with fittings (In.) – 40L x 25W x 32H
Dimensions listed are not a complete representation of total space necessary. Please consult Vanair for overall space and air requirements.
Dry Weight (Lbs.) – 440Lbs.
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations
AIR COMPRESSOR
- Lifetime Warranty
- Rotary Screw
- Vanair Encapsulated Air End
- Belt-Driven
ENGINE
- Honda® iGX800 EFI, 25 HP
- Gasoline
- 4-Cycle, V-Twin, Overhead Valve
- 10 Gal. Fuel Tank
INSTRUMENTATION
- Temperature Indicator
- Engine Diagnostic Lamp
- Hour Meter
- Digital Pressure Display
CANOPY
-
Powder-Coated Galvanneal Sheet Metal
-
Lifting Bail
MAINTENANCE
-
Easy Service Access
-
Removable Front Panel and Hinged Top for Serviceability
SAFETY EQUIPMENT
- Air Pressure-Relief Safety Valve
- Minimum Pressure Valve
- Automatic Blowdown on Shutdown
- Low Engine Oil Pressure Shutdown
- High Compressor Temperature and Pressure Shutdown
OPTIONAL ACCESSORIES
| PART DESCRIPTION | PART NUMBER |
|---|---|
| Cold Weather Kit 12V (Viper G Series) – Includes Compressor, Engine, Inlet & Regulator Heaters*” Cold Weather Kits Must be Installed at Time of Factory Build | 032983 |
| Compressor Service Kit, Initial 50 Hours (Viper G & D Series) | KIT1212 |
| Compressor Service Kit, Lifetime Warranty (Viper G & D Series) | KIT1221 |
| Engine Service Kit – Includes 2 QT Oil, Oil Filter, Air Filter, Pre-Filter (Viper G & Viper Generator Series)” | KIT1291 |
| Vanguard™ Premium Green Oil (Four Pack) | 264626-4GREEN |
| Vanguard™ Premium Oil (Four Gal.) | 264626-4PACK |
