DESCRIPTION

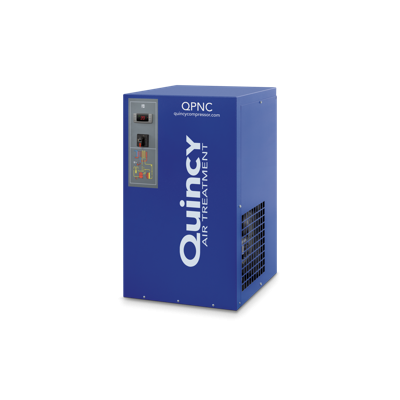

Quincy QPNC-184, 184 CFM Refrigerated Air Dryer, 1.5" NPT, 230/1/60 , Rated for 40 HP Air Compressors
The QPNC is a high performance, conventional non cycling refrigerated air dryer with a simple control system that employs modulating refrigeration valves to maintain performance. Best suited for systems with relatively constant loads.
- Consistent dew-point
- Zero-loss drain
- Lockable start/stop switch
Product Description:
Quincy non-cycling dryers use a two-stage heat exchanger system to maintain consistent dew points. Temperature of the compressed air is reduced to approximately 39 degrees F to condense moisture. Moisture is then removed from the system by an integrated moisture separator and zero loss drain. The dry condensed air is then reheated by warm incoming air and is then ready for delivery to downstream products.
Key Features & Benefits:
- Zero loss electronic drain for energy savings - Integrated moisture separator - Low pressure drop over dryer - 10-Year Heat Exchanger Warranty - Digital dew point display - Environmentally safe refrigerant
