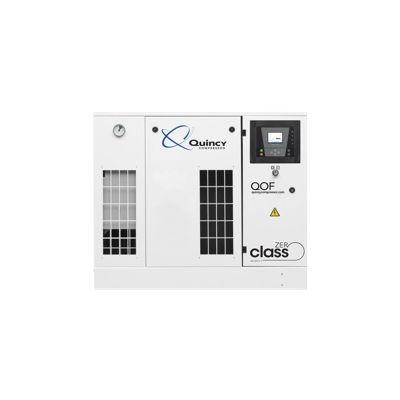

Quincy 7.5 HP Oilless Scroll Air Compressor with Integrated Air Dryer, 14 CFM, 145 PSI, 208-230/460 Volt, 3-Phase | QOF-7.5-HP-FMD

Model:
QOF-7.5-HP-FMD
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Air Compressor Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Call Toll Free:  866-203-9939



"Over 100 Years of Experience"
Ships Direct
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • Product Q & A

DESCRIPTION

Quincy 7.5 HP Oilless Scroll Air Compressor with Integrated Air Dryer, 14 CFM, 145 PSI, 208-230/460 Volt, 3-Phase | QOF-7.5-HP-FMD

Product Description:
QOF oil-free scroll compressors provide high-quality compressed air for critical applications in a wide range of industries. Continuous investment in research and development has resulted in economical and ecological compressors. The QOF 2-30 range provides top class performance, premium efficiency and quality.

Key Features & Benefits:
What's more, with an oil-free compressor, you are also reducing your total cost of ownership in three ways: (1) by avoiding expensive filter replacements, (2) cutting maintenance costs for treating oil condensate and (3) the costs of extra energy needed to combat pressure drop across filters.

TECH DATA

  • Product Specification

    • Capacity (CFM) @ 145 PSI
      14 CFM @ 145 PSI
    • Compressor Style
      Oilless Scroll
    • Controls
      Start/Stop
    • Cooling System
      Air
    • Horsepower (HP)
      7.5 HP
    • Max Pressure (PSI)
      145 PSI
    • Pump Drive
      Belt
  • Overview & Technical Details

    • Air Dryer Style
      Refrigerated Air Dryer
    • Sound Level dBA
      59 dB(A)
  • Additional Features

    • After Cooler
      Included
    • Air Dryer Included
      Included
    • Magnetic Starter
      Mounted & Wired
  • Motor Data

    • Motor Type
      TEFC
  • Power Requirements

    • 208/3/60
      25.3 Full Load Running Amps
    • 230/240/3/60
      22 Full Load Running Amps
    • 460/480/3/60
      11 Full Load Running Amps
    • Standard Voltages
      208-230/460 Volt, 3-Phase
  • Warranty

    • Standard Warranty
      Factory Warranty
