  • Champion 20 HP Air Compressor 77.8 CFM @ 175 PSI, Two Stage, 240 Gallon Air Tank, 460-Volt, 3-Phase | HR20-24

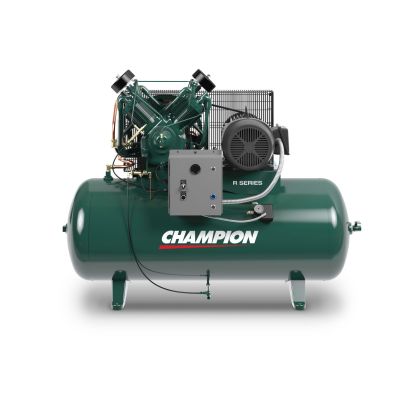

Champion 20 HP Air Compressor 77.8 CFM @ 175 PSI, Two Stage, 240 Gallon Air Tank, 460-Volt, 3-Phase | HR20-24

Champion 20 HP Air Compressor 77.8 CFM @ 175 PSI, Two Stage, 240 Gallon Air Tank, 460-Volt, 3-Phase | HR20-24
Model:
HR20-24-460-3
Order by Phone
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Air Compressor Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Call Toll Free:  866-203-9939



"Over 100 Years of Experience"
Request a Quote
Ships Direct
Be the first to review
Write a Review
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • VIDEOS
  • Product Q & A

DESCRIPTION

Champion 20 HP Air Compressor 77.8 CFM @ 175 PSI, Two Stage, 240 Gallon Air Tank, 460-Volt, 3-Phase | HR20-24


Loaded with rugged features, the Champion R-Series splash-lubricated compressors deliver high performance, long life and tremendous value.

TECH DATA

  • Product Specification

    • Capacity (CFM) @ 175 PSI
      76.7 CFM @ 175 PSI
    • Controls
      Start/Stop Operation
    • Horsepower (HP)
      20 HP
    • Pressure Rating
      175 PSI
    • Pump Drive
      Belt Driven
    • Pump Model
      R-70A
    • Pump Type
      Splash Lubricated
    • RPM
      664 RPM

  • Additional Features

    • After Cooler
      Optional
    • Tank Drain Valve
      Manual Tank Drain

  • Motor Data

    • Motor Type
      ODP Motor

  • Power Requirements

    • 208/3/60
      62.1 Full Load Running Amps
    • 230/240/3/60
      54 Full Load Running Amps
    • 460/480/3/60
      27 Full Load Running Amps
    • Standard Voltages
      208/230/460/3/60

  • Tank Size

    • Air Tank Configuration
      Horizontal
    • Air Tank Included
      Included
    • Air Tank Size
      240 Gallon Tank
    • Coded
      ASME Coded

  • Warranty

    • Standard Warranty
      Factory Warranty
