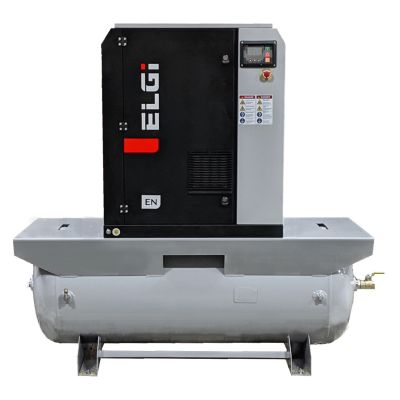

ELGI 20 HP Rotary Screw Air Compressor offering 68 CFM @ 125 PSI, 120 Gallon Air Tank, 208-230/460-Volt, 3-Phase | EN15-125-120T-3PH_T

ELGI 20 HP Rotary Screw Air Compressor offering 73 CFM @ 125 PSI, 120 Gallon Air Tank, 208-230/460-Volt, 3-Phase | EN15-125-120T-3PH_T
Model:
EN15-125-120T-3PH_T
Order by Phone
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Air Compressor Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Call Toll Free:  866-203-9939



"Over 100 Years of Experience"
Request a Quote
Ships Direct
Be the first to review
Write a Review
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • VIDEOS
  • Product Q & A

DESCRIPTION

FULLY INTEGRATED, ENERGY SAVING, TANK MOUNTED ROTARY SCREW AIR COMPRESSOR - BEST WARRANTY IN IT'S CLASS

Exclusive ELGi™ air ends encapsulate all major functions into a common frame, so there’s no threat of leaks or energy-robbing pressure drops. So you’ll save energy and reduce maintenance costs.







TECH DATA

  • Product Specification

    • Capacity (CFM) @ 125 PSI
      68 CFM @ 125 PSI
    • Compressor Style
      Lubricated Rotary Screw
    • Controls
      Start/Stop with Timed Shutdown
    • Cooling Type
      Air Cooled
    • Horsepower (HP)
      20 HP
    • Pump Drive
      Belt
    • Rated Duty Cycle
      100%
    • Tank Material
      Carbon Steel

  • Overview & Technical Details

    • Approach Temperature
      20 Degrees F
    • Certifications
      UL Certified, ASME Coded
    • Fluid Type
      Factory Fluid
    • Power Source/Type
      Electric
    • Sound Level dBA
      68 dB(A)
    • Starting System
      Wye Delta Starting

  • Additional Features

    • After Cooler
      Included
    • Air Dryer Included
      No
    • Tank Drain Valve
      Manual Drain

  • Motor Data

    • Motor Type
      TEFC

  • Power Requirements

    • 208/3/60
      62.1 Full Load Running Amps
    • 230/240/3/60
      54 Full Load Running Amps
    • 460/480/3/60
      27 Full Load Running Amps
    • Standard Voltages
      208/230/460/3/60

  • Tank Size

    • Air Tank Configuration
      Horizontal
    • Air Tank Included
      Included
    • Air Tank Size
      120 Gallon
    • Tank Size
      120 Gallon

  • Warranty

    • Standard Warranty
      1 Year Parts & Labor, 6 Year Airend Warranty
