ELGI Duplex 15 HP Rotary Screw Air Compressor 110 CFM @ 125 PSI, 208-230/460-Volt, 3-Phase | EN11-125-120Q-A2A

Duplex 15 HP Rotary Screw Compressor 110 CFM, 3-Phase (30 HP Total) | EN11-125-120Q-A2A
Model:
EN11-125-120Q-A2A
Order by Phone
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Air Compressor Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Call Toll Free:  866-203-9939



"Over 100 Years of Experience"
Request a Quote
Ships Direct
Rating:
100% of 100
2  Reviews
Write a Review
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • VIDEOS
  • Product Q & A

DESCRIPTION

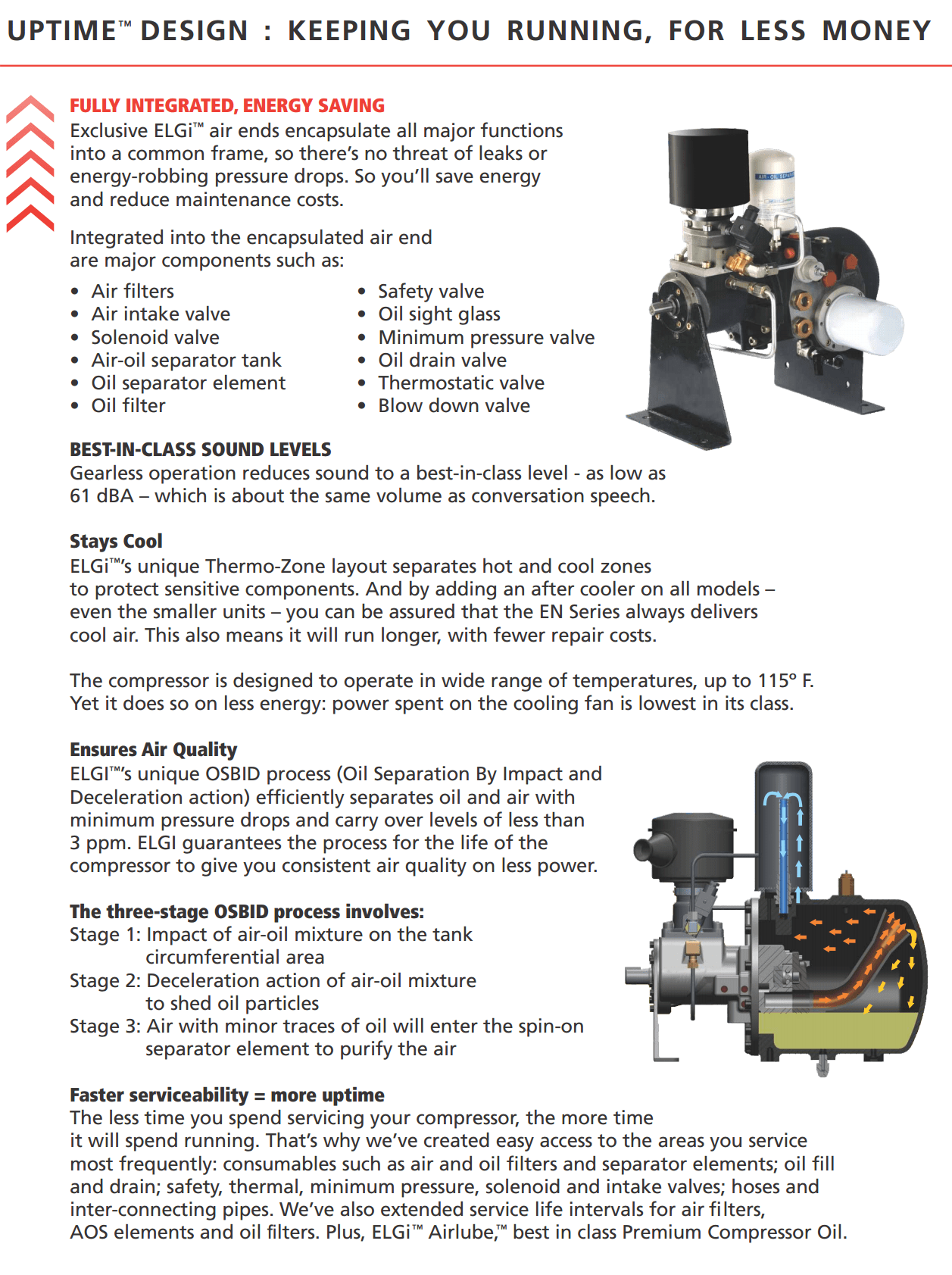

BUILT IN BACK UP with the ELGI EN Series Duplex Air Compressors - The BEST Warranty in it's class.
3-40 HP Base Mounted Air Compressors

TECH DATA

  • Product Specification

    • Capacity (CFM) @ 100/125 PSI
      110 CFM @ 125 PSI
    • Compressor Style
      Lubricated Rotary Vane
    • Controls
      Load/No Load with Timed Shutdown
    • Cooling Type
      Air Cooled
    • Horsepower (HP)
      15 HP Per Compressor (30 HP Total)
    • Max Pressure (PSI)
      128 PSI
    • Min Ambient Temperature
      40 F
    • Pump Drive
      Belt
    • Pump Type
      Rotary Screw
    • Rated Duty Cycle
      100%
    • Tank Material
      Carbon Steel

  • Overview & Technical Details

    • Approach Temperature
      20 Degrees F
    • Certifications
      UL & ASME
    • Fluid Type
      Factory Fluid
    • Power Source/Type
      Electric

  • Additional Features

    • Tank Drain Valve
      Manual Drain

  • Motor Data

    • Motor Type
      TEFC

  • Power Requirements

    • Standard Voltages
      208-230/460 Volt, 3-Phase
    • Voltage
      208-230/460 Volt, 3-Phase

  • Tank Size

    • Air Tank Configuration
      Horizontal
    • Air Tank Included
      Included
    • Air Tank Size
      120 Gallon
    • Tank Size
      120 Gallon

  • Warranty

    • Standard Warranty
      1 Year Parts & Labor, 6 Year Airend Warranty
