  • Chicago Pneumatic QRS 7.5 HPD-1 TM, 7.5 HP Rotary Screw Air Compressor, 26.1 CFM @ 150 PSI, 60 Gallon Tank & Air Dryer 230 Volt 1-Phase | 4152054809

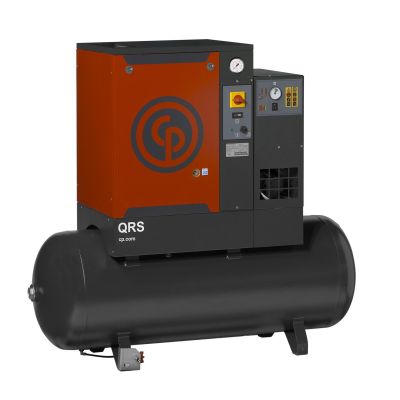

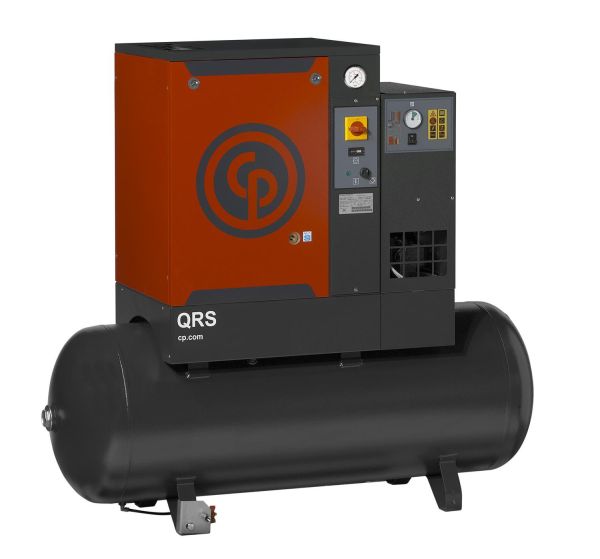

Chicago Pneumatic QRS 7.5 HPD-1 TM, 7.5 HP Rotary Screw Air Compressor, 26.1 CFM @ 150 PSI, 60 Gallon Tank & Air Dryer 230 Volt 1-Phase | 4152054809

Chicago Pneumatic 7.5 HP Rotary Screw Air Compressor, 26.1 CFM @ 150 PSI, 60 Gallon Tank & Air Dryer 230 Volt 1-Phase | QRS 7.5 HPD-1 TM
Model:
QRS 7.5 HPD-1 TM
Vendor Item Number:
4152054809
Order by Phone
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Air Compressor Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Call Toll Free:  866-203-9939



"Over 100 Years of Experience"
Request a Quote
Ships Direct
Rating:
100% of 100
4  Reviews
Write a Review
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • VIDEOS
  • Product Q & A

DESCRIPTION

Chicago Pneumatic 7.5 HP Rotary Screw Air Compressor, 26.1 CFM @ 150 PSI, 60 Gallon Tank & Air Dryer 230 Volt 1-Phase | QRS 7.5 HPD-1 TM


Quiet Rotary Screw (QRS) 3 to 15 hp

Engineered for high performance, efficiency and reliability, the Chicago Pneumatic line of QRS (Quiet Rotary Screw) air compressors can meet the compressed air demands of a tire shop, maintenance shop, vehicle body, paint shop or automotive dealership.

Quiet by design, the QRS can be installed almost anywhere. With standard mounted receiver tank and 5 Year Warranty, the QRS is the leading rotary screw compressor for light industrial applications.


Watch our Video of our Chicago Pneumatic Air Compressors

TECH DATA

  • Product Specification

    • Capacity (CFM) @ 150 PSI
      26.1 CFM @ 150 PSI
    • Compressor Style
      Lubricated Rotary Screw
    • Controls
      Load/No Load Controls with Timed Shutdown
    • Cooling Type
      Air Cooled
    • Dew Point
      39 F
    • Horsepower (HP)
      7.5
    • Max Pressure (PSI)
      150 PSI
    • Min Ambient Temperature
      34°F
    • Oil Capacity
      0.66 Gallon
    • Oil Carryover
      3 ppm
    • Rated Duty Cycle
      100%
    • Tank Material
      Carbon Steel

  • Overview & Technical Details

    • Air Dryer Style
      Refrigerated
    • Certifications
      UL Certified, ASME Coded
    • Electrical Starting
      Across the line Starting
    • Max Ambient Temperature
      104°F
    • Oil Type
      Synthetic
    • Power Source/Type
      Electric
    • Sound Level dBA
      64 dB(A)

  • Additional Features

    • Air Dryer Included
      Included
    • Tank Drain Valve
      Manual Drain

  • Connection

    • Connection NPT
      1/2"

  • Dimensions & Weight

    • Dimensions (L)(W)(H)
      56" x 24" x 50"
    • Height (inch)
      50"
    • Length (inch)
      56"
    • Width (inch)
      24"
    • Weight (lbs)
      600.000000

  • Motor Data

    • Motor Type
      TEFC

  • Power Requirements

    • 208/230/1/60
      36 Full Load Running Amps
    • Standard Voltages
      230/1/60

  • Tank Size

    • Air Tank Configuration
      Horizontal
    • Air Tank Included
      Included
    • Air Tank Size
      60 Gallon
    • Coded
      ASME Coded
    • Tank Size
      60 Gallon

  • Warranty

    • Optional Warranty
      5 Year Extended Warranty Optional
    • Standard Warranty
      1 Year Parts & Labor
