Chicago Pneumatic 7.5 HP Rotary Screw Air Compressor, 26.1 CFM @ 150 PSI, 60 Gallon Air Tank 208-230/460 Volt, 3-Phase | QRS 7.5 HP TM | 4152054783

Chicago Pneumatic 7.5 HP Rotary Screw Air Compressor, 26.1 CFM @ 150 PSI, 60 Gallon Air Tank 208-230/460 Volt, 3-Phase | QRS 7.5 HP TM | 4152054783
Model:
QRS 7.5 HP TM
Vendor Item Number:
4152054783
Order by Phone
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Air Compressor Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Call Toll Free:  866-203-9939



"Over 100 Years of Experience"
Request a Quote
Ships Direct
Rating:
100% of 100
4  Reviews
Write a Review
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • VIDEOS
  • Product Q & A

DESCRIPTION

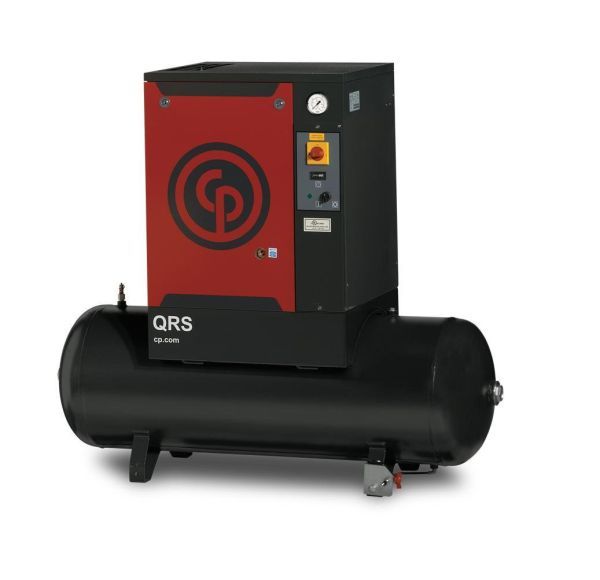

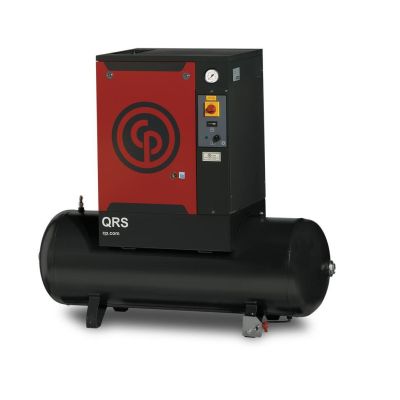

Chicago Pneumatic 7.5 HP Rotary Screw Air Compressor, 26.1 CFM @ 150 PSI, 60 Gallon Air Tank 208-230/460 Volt, 3-Phase | QRS 7.5 HP TM | 4152054783


Quiet Rotary Screw (QRS) 3 to 15 hp

Engineered for high performance, efficiency and reliability, the Chicago Pneumatic line of QRS (Quiet Rotary Screw) air compressors can meet the compressed air demands of a tire shop, maintenance shop, vehicle body, paint shop or automotive dealership.

Quiet by design, the QRS can be installed almost anywhere. With standard mounted receiver tank and 5 Year Warranty, the QRS is the leading rotary screw compressor for light industrial applications.


Watch our Video of our Chicago Pneumatic Air Compressors

TECH DATA

  • Product Specification

    • Capacity (CFM) @ 150 PSI
      26.1 CFM @ 150 PSI
    • Controls
      Start/Stop Operation
    • Cooling Type
      Air Cooled
    • Horsepower (HP)
      7.5
    • Min Ambient Temperature
      34°F
    • Oil Capacity
      0.66 Gallons
    • Oil Carryover
      3 ppm

  • Overview & Technical Details

    • Certifications
      UL & ASME Coded
    • Max Ambient Temperature
      104°F
    • Max Operating Pressure
      150 PSI
    • Oil Type
      Synthetic
    • Sound Level dBA
      64 dB(A)

  • Additional Features

    • Tank Drain Valve
      Manual Drain

  • Dimensions & Weight

    • Dimensions (L)(W)(H)
      56" x 24" x 50"
    • Weight (lbs)
      500.000000

  • Motor Data

    • Motor Type
      TEFC

  • Power Requirements

    • 208/3/60
      21.5 Amps
    • 230/240/3/60
      19.5 Amps
    • 460/480/3/60
      9.9 Amps
    • Standard Voltages
      208-230/460/3/60

  • Tank Size

    • Air Tank Configuration
      Horizontal
    • Air Tank Included
      Included
    • Air Tank Size
      60 Gallon

  • Warranty

    • Standard Warranty
      1 Year Factory Warranty
