Chicago Pneumatic QRS 5.5 HP TM, 5.5 HP Rotary Screw Air Compressor, 18.1 CFM @ 150 PSI, 60 Gallon Tank 208-230/460 Volt, 3-Phase | 4152054777

Chicago Pneumatic QRS 5.5 HP TM, 5.5 HP Rotary Screw Air Compressor, 18.1 CFM @ 150 PSI, 60 Gallon Tank 208-230/460 Volt, 3-Phase | 4152054777

Skip to the end of the images gallery

Chicago Pneumatic 5.5 HP Rotary Screw Air Compressor, 18.1 CFM @ 150 PSI, 60 Gallon Tank 208-230/460 Volt, 3-Phase | QRS 5.5 HP TM

Skip to the beginning of the images gallery

Model:

QRS 5.5 HP TM

Vendor Item Number:

4152054777

Request a Quote

Order by Phone

Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.

Our Team Consists of "Air Compressor Experts", Challenge Us!

Mon-Fri 8 am to 5:00 pm EST
Call Toll Free: 866-203-9939

"Over 100 Years of Experience"

Request a Quote

Ships Direct

Rating:

100% of 100

1 Review

Write a Review

Share
FB TW Pint email
Factory Location: Charlotte, NC

DESCRIPTION
TECH DATA
PRODUCT REVIEWS
VIDEOS
Product Q & A

DESCRIPTION

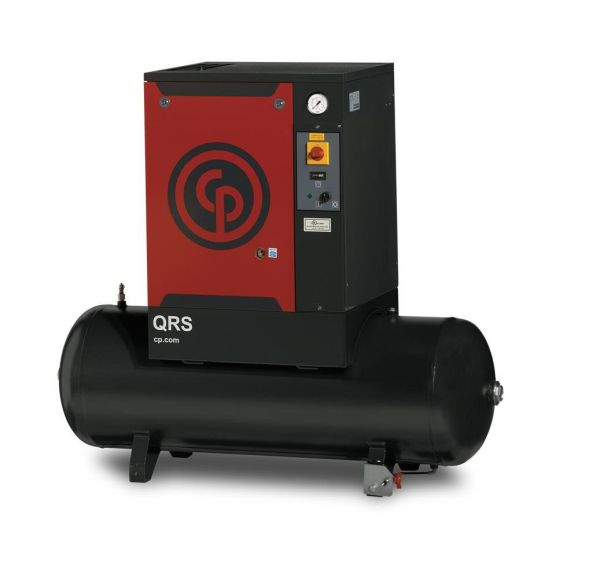

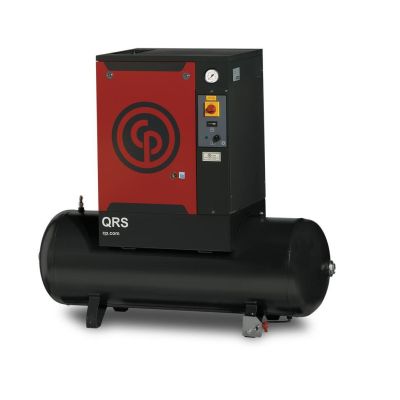

Chicago Pneumatic 5.5 HP Rotary Screw Air Compressor, 18.1 CFM @ 150 PSI, 60 Gallon Tank 208-230/460 Volt, 3-Phase | QRS 5.5 HP TM

Quiet Rotary Screw (QRS) 3 to 15 hp

Engineered for high performance, efficiency and reliability, the Chicago Pneumatic line of QRS (Quiet Rotary Screw) air compressors can meet the compressed air demands of a tire shop, maintenance shop, vehicle body, paint shop or automotive dealership.

Quiet by design, the QRS can be installed almost anywhere. With standard mounted receiver tank and 5 Year Warranty, the QRS is the leading rotary screw compressor for light industrial applications.

Features:

Low sound enclosure
150 psig standard (125 psig available 10-15 HP)
Continuous operating capability
60 gal ASME/CRN receiver tank (3-7.5 HP)
120 gal ASME/CRN receiver tank (10-15 HP)
Single phase 230 TEFC motor (3-7.5 HP)
Three (3) phase, 208/230/460 and 575, TEFC motor
Start/Stop operation – QRS3.0 single phase, QRS3.0-7.5 3-phase
Load/ No load operation with timed shutdown
QRS5.0-7.5 single phase, QRS10-15
UL and cUL approved control panel
5 year warranty with authorized start-up (This cost is $350.00)

Watch our Video of our Chicago Pneumatic Air Compressors

TECH DATA

Product Specification
- Capacity (CFM) @ 150 PSI

  18.1 CFM @ 150 PSIG
- Controls

  Start/Stop Operation
- Cooling Type

  Air Cooled
- Horsepower (HP)

  5 HP
- Min Ambient Temperature

  34°F
- Oil Capacity

  0.66 Gallon
- Oil Carryover

  3 ppm
Overview & Technical Details
- Certifications

  UL & ASME Coded
- Max Ambient Temperature

  104°F
- Max Operating Pressure

  150 PSI
- Oil Type

  Synthetic
- Sound Level dBA

  62 dB(A)
Additional Features
- Tank Drain Valve

  Manual Drain
Dimensions & Weight
- Dimensions (L)(W)(H)

  56" x 24" x 50"
- Weight (lbs)

  463.000000
Motor Data
- Motor Type

  TEFC
Power Requirements
- 208/3/60

  17.5 Full Load Running Amps
- 230/240/3/60

  15.2 Full Load Running Amps
- 460/480/3/60

  7.6 Full Load Running Amps
- Standard Voltages

  208-230/460/3/60
Tank Size
- Air Tank Configuration

  Horizontal
- Air Tank Included

  Included
- Air Tank Size

  60 Gallon
Warranty
- Optional Warranty

  5 Year Optional Warranty
- Standard Warranty

  1 Year Factory Warranty
