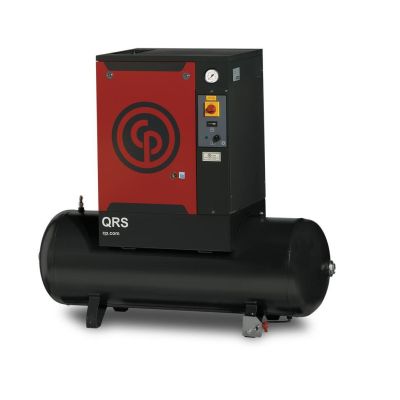

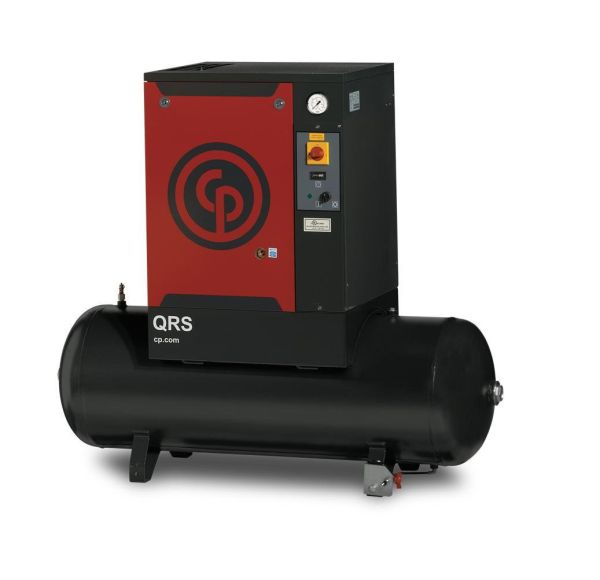

Chicago Pneumatic 3 HP Rotary Screw Air Compressor, 9.6 CFM @ 150 PSI, 60 Gallon Tank 208-230/460 Volt 3-Phase | QRS 3.0 HP TM | 4152054771

Model:
QRS 3.0 HP TM
Vendor Item Number:
4152054771
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Air Compressor Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Call Toll Free:  866-203-9939



"Over 100 Years of Experience"
Ships Direct
Rating:
100% of 100
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • VIDEOS
  • Product Q & A

DESCRIPTION

Chicago Pneumatic 3 HP Rotary Screw Air Compressor, 9.6 CFM @ 150 PSI, 60 Gallon Tank 208-230/460 Volt 3-Phase | QRS 3.0 HP TM | 4152054771


Quiet Rotary Screw (QRS) 3 to 15 hp

Engineered for high performance, efficiency and reliability, the Chicago Pneumatic line of QRS (Quiet Rotary Screw) air compressors can meet the compressed air demands of a tire shop, maintenance shop, vehicle body, paint shop or automotive dealership.

Quiet by design, the QRS can be installed almost anywhere. With standard mounted receiver tank and 5 Year Warranty, the QRS is the leading rotary screw compressor for light industrial applications.


Watch our Video of our Chicago Pneumatic Air Compressors

TECH DATA

  • Product Specification

    • Capacity (CFM) @ 150 PSI
      9.8 CFM @ 150 PSI
    • Controls
      Start/Stop Operation (230/1/60 has timed shutdown)
    • Cooling Type
      Air Cooled
    • Horsepower (HP)
      3
    • Min Ambient Temperature
      34°F
    • Oil Capacity
      0.66 Gallons
    • Oil Carryover
      3 ppm
    • Pressure Rating
      145 PSI
  • Overview & Technical Details

    • Certifications
      UL & ASME Coded
    • Max Ambient Temperature
      34°F
    • Oil Type
      Synthetic
    • Sound Level dBA
      61 dB(A)
  • Additional Features

    • Tank Drain Valve
      Manual Drain
  • Connection

    • Connection NPT
      1/2"
  • Dimensions & Weight

    • Dimensions (L)(W)(H)
      56" x 24" x 50"
    • Weight (lbs)
      463.000000
  • Motor Data

    • Motor Type
      TEFC
  • Power Requirements

    • 208/3/60
      12.2 Amps
    • 230/240/3/60
      10.2 Amps
    • 460/480/3/60
      5.2 Amps
    • Standard Voltages
      208-230/460/3/60
  • Tank Size

    • Air Tank Configuration
      Horizontal
    • Air Tank Included
      Included
    • Air Tank Size
      60 Gallon
  • Warranty

    • Optional Warranty
      5 Year Optional Warranty
    • Standard Warranty
      1 Year Factory Warranty
