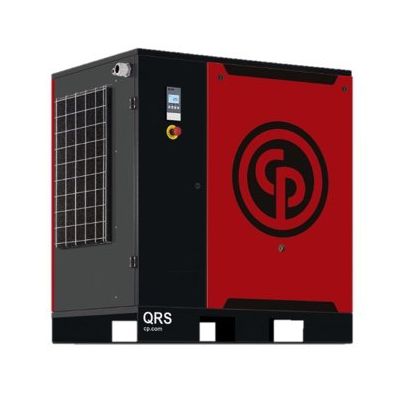

Chicago Pneumatic 20 HP Rotary Screw Air Compressor 82.2 CFM @ 125 PSI, 208-230/460 Volt, 3-Phase | QRS 20 125 BM | 4152026996

Standard Features;

- Low Sound Enclosure

- Wye Delta Starting

- Tri Voltage Motor

- TEFC Drive Motor, 3-Phase 208/230/460/3/60 and 575 Volt Available

- Vibration Isolated Assembly

- Electronic Microprocessor Controller

- Spin on Oil Filter and Separator

- Load/No Load with Intelligent Shutdown

- Maintenance Indication

- Continuous Operation Capability

- UL and cUL Approved Control Panel

Warranty

- 1 Year Parts & Labor

- Optional 5 Year Extended Warranty

Options; Every QRS 20-30 can be supplied base mounted or with a factory-mounted 120 gallon receiver tank and refrigerated air dryer to save vital floor space.

Watch our Video of our Chicago Pneumatic Air Compressors

TECH DATA

Product Specification
- Capacity (CFM) @ 125 PSI

  82.2 CFM @ 125 PSI
- Controls

  Load/No Load Controls with Timed Shutdown
- Horsepower (HP)

  20 HP
- Min Ambient Temperature

  34°F
- Oil Capacity

  3.17 Gallons
Overview & Technical Details
- Certifications

  UL and cUL approved control panel
- Electrical Starting

  Wye-Delta, Reduced Voltage Start
- Max Ambient Temperature

  115°F
- Max Oil Carry-Over (mg/m3)

  < 3
- Oil Type

  Synthetic
- Sound Level dBA

  67 dBA
Additional Features
- After Cooler

  Included
Dimensions & Weight
- Dimensions (L)(W)(H)

  45" x 31" x 49"
- Weight (lbs)

  1000.000000
Motor Data
- Motor Type

  TEFC
Power Requirements
- 208/3/60

  50.24 Amps
- 230/240/3/60

  45.43 Amps
- 460/480/3/60

  22.72 Amps
Warranty
- Standard Warranty

  CP Secure 1-Year Warranty ( option to extend to a full 5-year warranty)
