DESCRIPTION

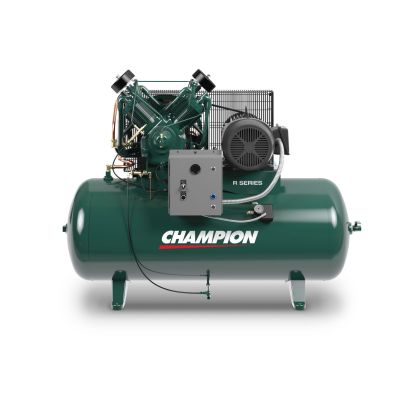

Two Stage, Pressure Lubricated (3-30 HP) Reciprocating Air Compressor
Champion PL-Series pressure lubricated compressors have a time-tested, proven design. Rugged standard features, a wide selection of configurations, and quality available options make the PL-Series compressors the solution to your application. They deliver high performance, long life and tremendous value. Champion compressors are the proven choice.
Specifications and Features
- 3 - 30 hp
- Up to 250 psig
- 9.7 - 202 acfm at 175 psig on Electric Driven units
- Tank or Base Mounted, Simplex, Duplex and Engine Driven Models
- Two-Stage pressure lubricated pumps
- Loadless auto stop/start
- 3-year Pump Warranty and 1-year Package Warranty
- Factory filled with AEON lubricant
Standard Features
- Load-less starting (via hydraulic unloader) for lower energy costs and less wear on drive motor
- ASME inter-stage pressure relief valve for protection
- ODP NEMA 1760 RPM electric motor
- 10 Micron industrial grade intake filter
- ASME coded receiver
- 0-300 PSIG air pressure gauge on tank
- Available voltages
- Single phase-115/208-230
- Three phase-208/230/460/575
BENEFITS
- Pressure lubrication-crankshaft and connecting rod bearings are pressure lubricated for extended life
- Integral cylinder/head design for trouble-free operation
- Disc valves and an oil pump that provides lubricant to all critical components
- Load-less starting via hydraulic unloader
- Positive displacement oil pump
- Lubricant filtration
- Oil pressure gauge
- Babbitt bearings
- Domed pistons
