Champion 10 HP CA Scroll Oil-less Air Compressor Air End | SC10

Model:
SC10
Vendor Item Number:
305SIA8058
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Air Compressor Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Call Toll Free:  866-203-9939



"Over 100 Years of Experience"
Ships Direct
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • Product Q & A

DESCRIPTION

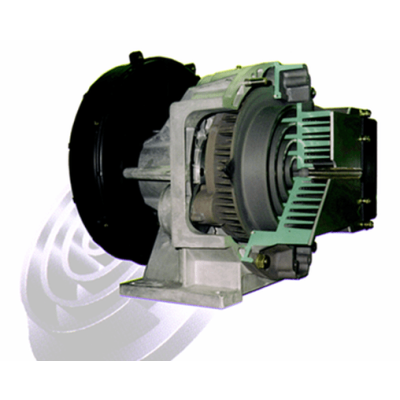

Champion 10 HP CA Scroll, Oil-less Air Compressor Air End | SC10

The CA-Series compressors provide the reliable, high quality compressed air that you've come to expect from Champion.  Designed specifically for industrial and laboratory applications that require 100% oil-less air.  CA-Series compressors offer a wide selection of configurations and top-qulaity available options.

This SC10 Oilless Compressor Pump can replace Hitachi and other oilless 10 HP pumps.

Standard Features
● Continuous operation, 100% duty cycle
● Oil-less, scroll, compressor design
● Aluminum compressor body
● Re-greasable bearings
● Compact for OEM applications
● Extremely low vibration
● 10,000 hour bearing maintenance - 116 psi option (5,000 hour for 140 psi option)
● 10,000 hour tip seal - 116 psi option (5,000 hour for 140 psi option)
● Special, internal coating for excellent durability
● Integral fan for maximum cooling
● Continuous duty
● Very low noise





TECH DATA

  • Product Specification

    • Capacity (CFM) @ 100 PSI
      31.6 CFM (3750 RPM)
    • Capacity (CFM) @ 145 PSI
      26.3 CFM @ 145 PSI (3216 RPM)
    • Compressor Style
      Oilless Scroll
    • Cooling Type
      Air
    • Horsepower (HP)
      10 HP
  • Connection

    • Discharge Connection Size (Inches)
      1/2" MNPT
    • Inlet Conn. (NPT)
      3/4" FNPT
  • Dimensions & Weight

    • Dimensions (L)(W)(H)
      17.29" x 16.57" x 13.94"
    • Weight (lbs)
      62.000000
  • Warranty

    • Standard Warranty
      Factory Warranty
