  • Chicago Pneumatic 35 HP Rotary Screw Air Compressor with Air Dryer 154 CFM @ 125 PSI Gear Drive 230/460 Volt | CPBg D 35 | 4152017640

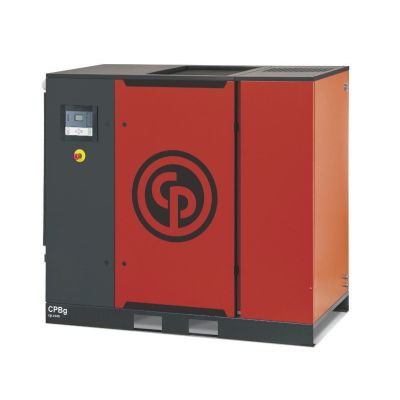

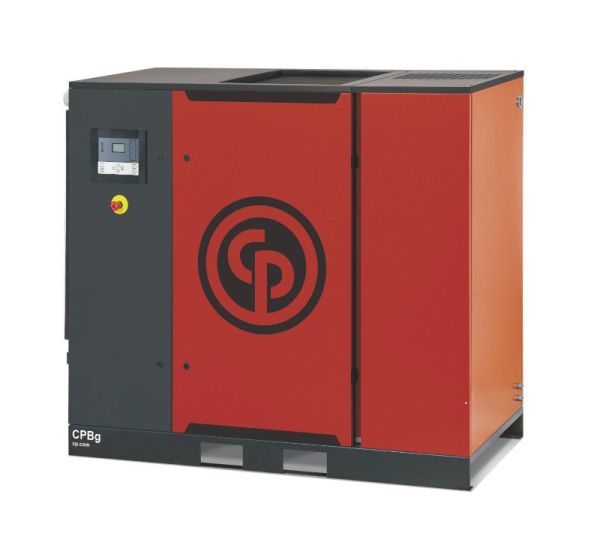

Chicago Pneumatic 35 HP Rotary Screw Air Compressor with Air Dryer 154 CFM @ 125 PSI Gear Drive 230/460 Volt | CPBg D 35 | 4152017640

Chicago Pneumatic 35 HP Rotary Screw Air Compressor with Air Dryer 154 CFM @ 125 PSI Gear Drive 230/460 Volt | CPBg D 35 | 4152017640
Model:
CPBg D 35 - 125
Vendor Item Number:
4152017640
Order by Phone
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Air Compressor Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Call Toll Free:  866-203-9939



"Over 100 Years of Experience"
Request a Quote
Ships Factory Direct
Be the first to review
Write a Review
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • Product Q & A

DESCRIPTION

Chicago Pneumatic 35 HP Rotary Screw Air Compressor with Air Dryer 154 CFM @ 125 PSI Gear Drive 230/460 Volt | CPBg D 35 | 4152017640

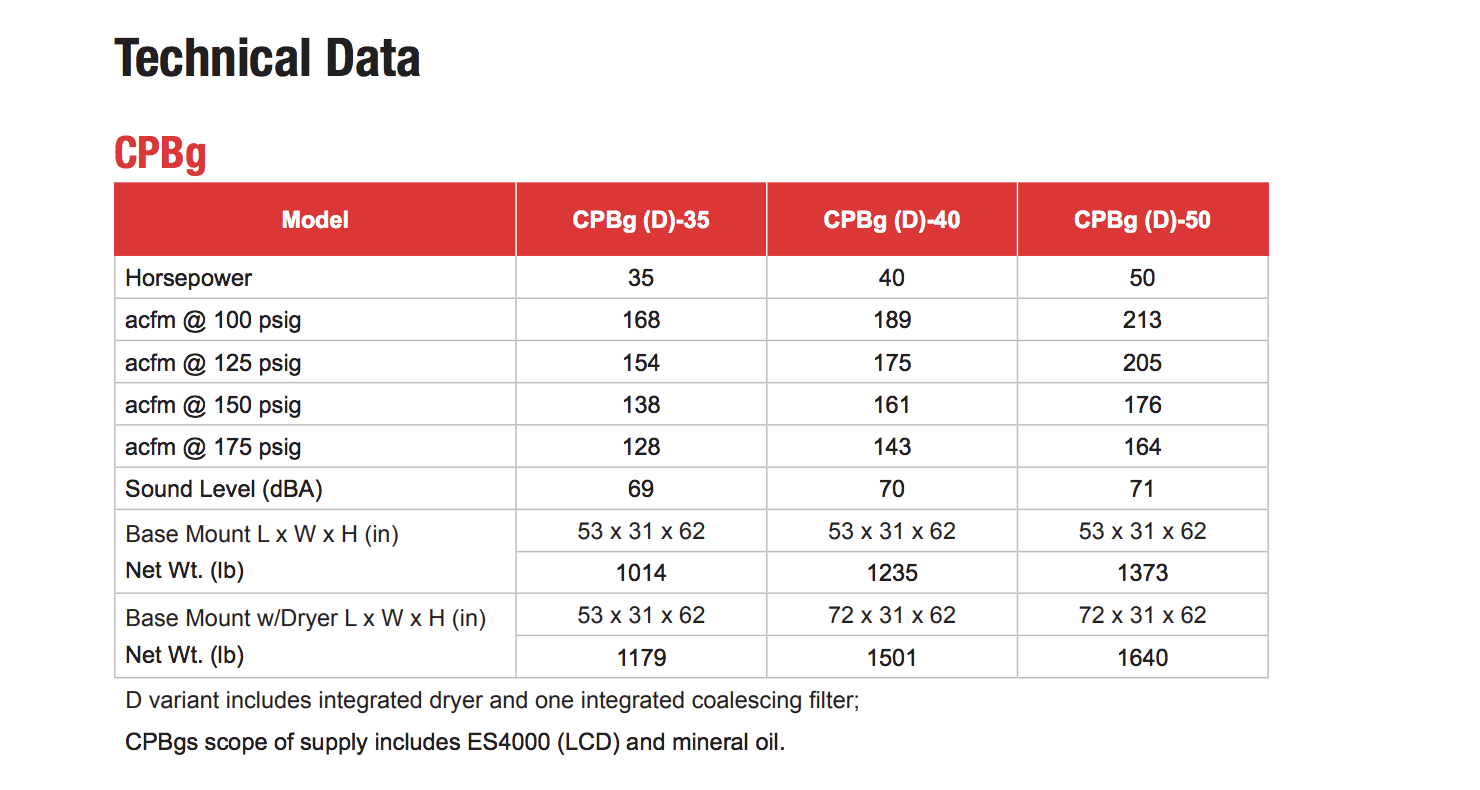

TECH DATA

  • Product Specification

    • Capacity (CFM) @ 100 PSI
      168 CFM @ 100 PSI
    • Capacity (CFM) @ 125 PSI
      154 CFM @ 125 PSI
    • Capacity (CFM) @ 150 PSI
      138 CFM @ 150 PSI
    • Capacity (CFM) @ 175 PSI
      128 CFM @ 175 PSI
    • Compressor Style
      Lubricated Rotary Screw

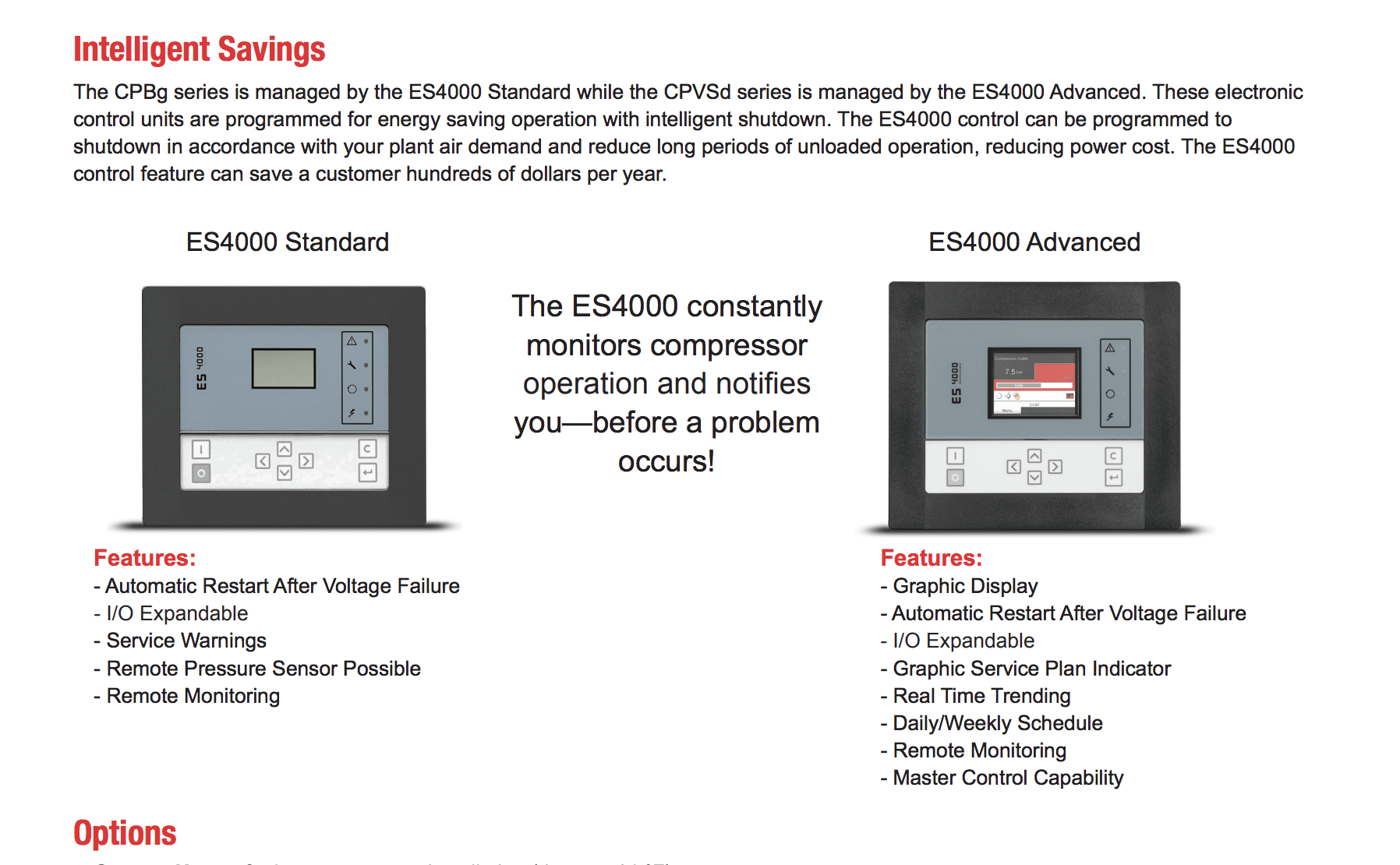

    • Controls
      Load/No Load
    • Cooling Type
      Air
    • Horsepower (HP)
      35 HP
    • Pump Drive
      Gear Drive

  • Overview & Technical Details

    • Air Dryer Style
      Refrigerated Air Dryer
    • Electrical Starting
      Wye-Delta, reduced voltage start
    • Fluid Capacity
      12.1 L or 3.27 Gallons
    • Fluid Type
      8000 Fluid
    • Sound Level dBA
      69 dBA

  • Additional Features

    • After Cooler
      Included
    • Air Dryer Included
      Included

  • Motor Data

    • Motor Type
      TEFC

  • Power Requirements

    • Standard Voltages
      230/460/3/60

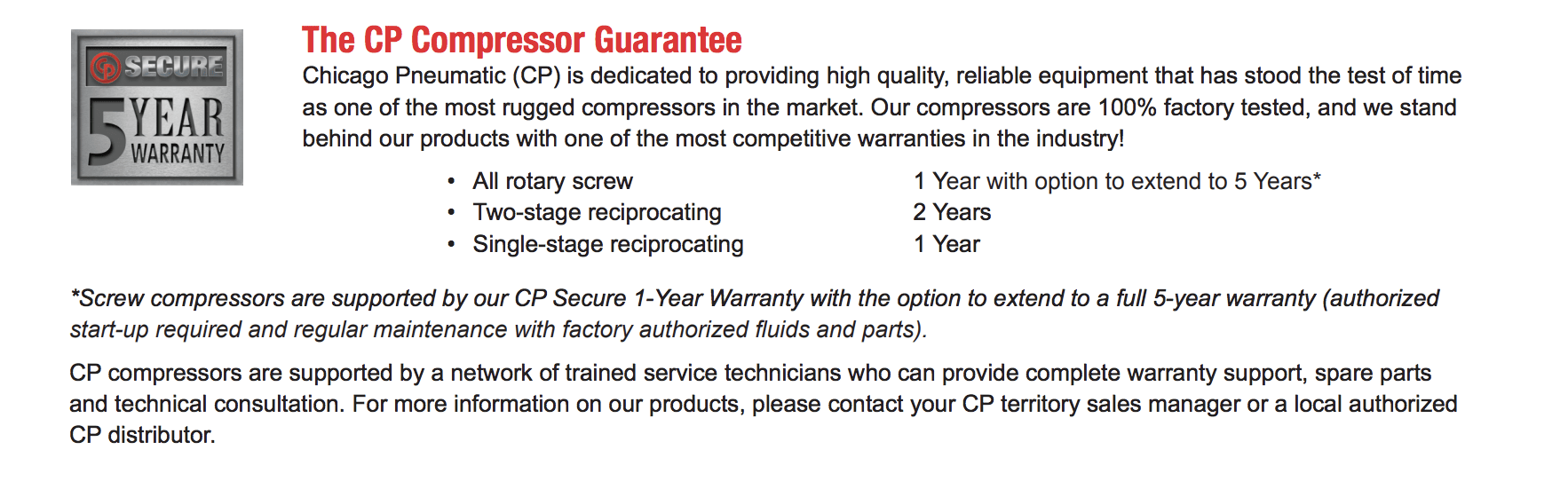

  • Warranty

    • Optional Warranty
      5 Year Optional Warranty
    • Standard Warranty
      CP Secure 1-Year Warranty
