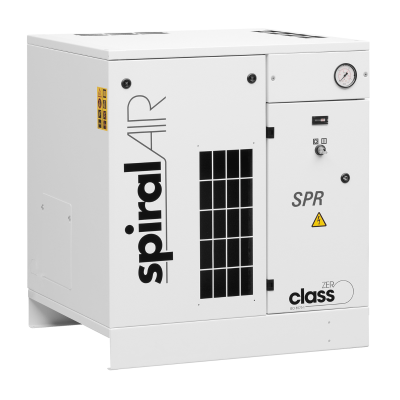

Chicago Pneumatic 3 HP SpiralAIR Oilless Scroll Air Compressor 8.9 CFM @ 116 PSI, 230 Volt, 1-Phase | SPR3 | 8153613271

Model:
SPR3 | 8153613271
Vendor Item Number:
8153613271
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Air Compressor Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Call Toll Free:  866-203-9939



"Over 100 Years of Experience"
Ships Factory Direct
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • Product Q & A

DESCRIPTION

Chicago Pneumatic 3 HP SpiralAIR Oilless Scroll Air Compressor 8.9 CFM @ 116 PSI, 230 Volt, 1-Phase | SPR3 | 8153613271

Features

  • Reduced footprint even for tank assembly SpiralAIR thanks to large diameter ASME vessels
  • Tank and base mount design allows forklift maneuverability
  • Possibility to install SPR at point of use with comfort for users
  • State of the art air cooled scroll elements, on/off regulation (hour meter)
  • SPR are class zero certified (no oil) and their integrated dryer version will also remove moisture

Benefits

  • Compactness
  • Easy handling and maintenance access
  • Very low noise level
  • Efficiency and reduced energy cost
  • Air quality and peace of mind

TECH DATA

  • Product Specification

    • Capacity (CFM) @ 100 PSI
      8.9 CFM @ 100 PSI
    • Controls
      Start/Stop
    • Cooling System
      Air Cooled
    • Horsepower (HP)
      3 HP
    • Max Pressure (PSI)
      116 PSIG
    • Pump Drive
      Belt
  • Overview & Technical Details

    • Sound Level dBA
      55 dB(A)
  • Additional Features

    • After Cooler
      Included
    • Magnetic Starter
      Starter Mounted & Wired
  • Dimensions & Weight

    • Dimensions (L)(W)(H)
      29.9" x 27.2" x 33.1"
    • Weight (lbs)
      276.000000
  • Motor Data

    • Motor Type
      TEFC
  • Power Requirements

    • 208/230/1/60
      17 Full Load Running Amps
    • Standard Voltages
      230 Volt, 1-Phase
  • Warranty

    • Standard Warranty
      Factory Warranty
