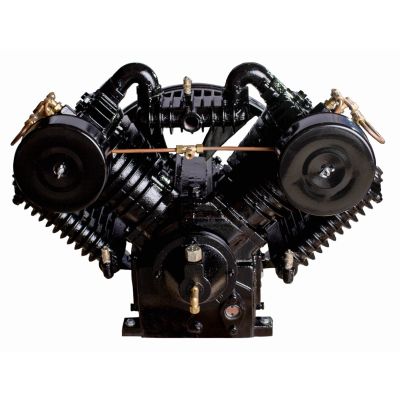

10 HP Piston Two Stage Air Compressor Pump 35 CFM 175 PSI with Flywheel | 2105

Model:
ZL2105TH
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Air Compressor Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Call Toll Free:  866-203-9939



"Over 100 Years of Experience"
Stock
Rating:
99% of 100
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • VIDEOS
  • Product Q & A

DESCRIPTION

KORE 10 Two Stage Replacement Air Compressor Pump 35 CFM | 175 PSI | Factory Direct

Standard Features
• 35-CFM @ 175-PSIG
• Heavy Duty Solid Cast Iron Pump for Long Pump Life
• Low RPM & Smooth Running for Maximum Life
• Dual Control
• Large Heavy Duty Intake Filter/Silencer
• Only the Highest Quality Parts and Components
• Pumps Offer Easy service & Maintenance
• 4-Cyclinder Heavy duty industrial air compressor pump
• Two Stage Pump (Two stage pumps offer a maximum pressure of 175-psig.
• Cast iron flywheel included
• Shipping Weight is 278-lbs
• Four-(4) Cylinders for maximum cooling
• Solid cast-iron cylinders, crankcase, flywheel, crankshaft, and valve plates
• Large Steel Automotive-Type Filters – not plastic
• Large site glass for viewing your oil level
• Parts are stock at the factory, immediate shipments are available
• After-Cooler bottle to eliminate pulsations and reduce discharge temperature

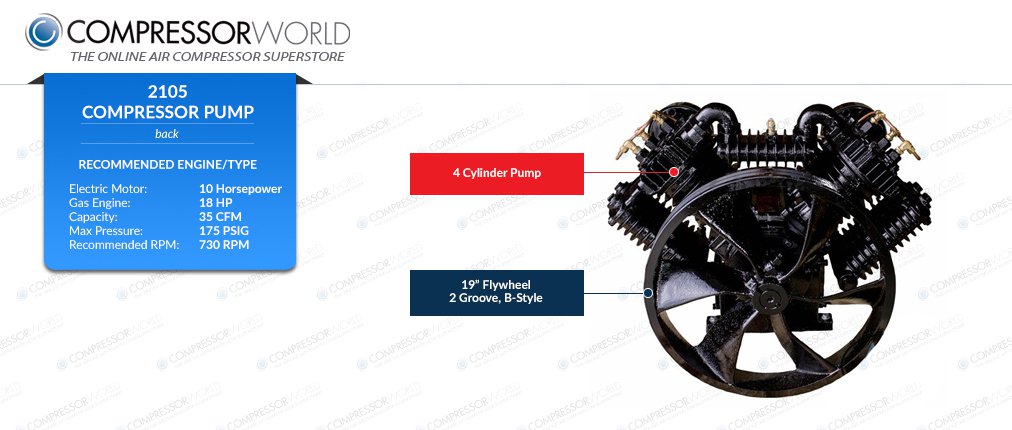

10 hp two stage air compressors

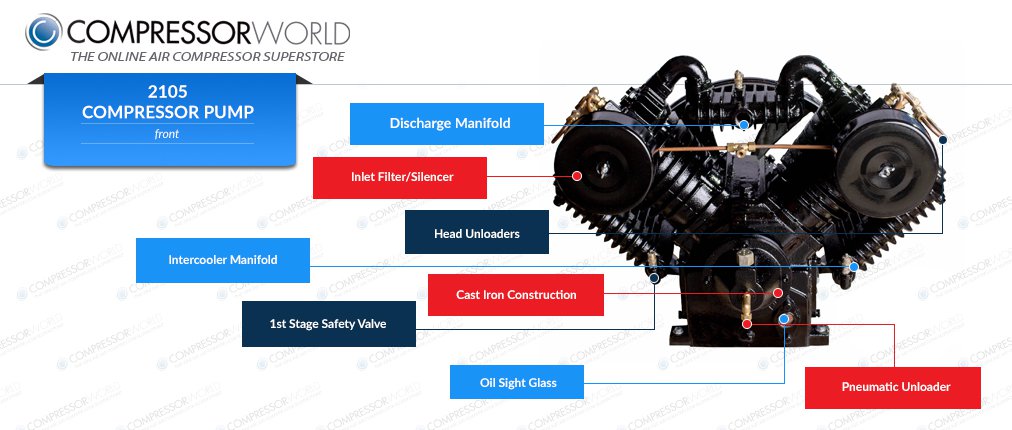

10 hp two stage air compressors



Shipping to a Business with Loading Dock

This item ships via a common carrier and needs to be delivered to a commercial business with the means of getting it off the truck.

-       Also, please note that Carriers require company name and phone number if a business.



Shipping to a Business with NO Loading Dock

-       Please note if you have a fork truck or means of removing the machine from the truck.  If you do not have the equipment to remove the machine, we recommend either;

  • Lift Gate Delivery (Which is additional)
  • Ship to the local terminal (You will have to pick it up)

-       Also, please note that Carriers require company name and phone number if a business.



Shipping to a Residential Address

-       Shipping to a residence is additional.  We recommend shipping the product to the local terminal for pick up, this would save you $$ as shipping direct to a residence can be very expensive.

-       If you decided to ship to a residence, please note “liftgate” delivery.  This will help with the removal of the machine from the truck. (Lift gate delivery is additional)

-       Also, please note your name and phone number for contact informatioNew layer...cccc

The main reason you would buy this compressor pump















TECH DATA

  • Product Specification

    • Belt Type
      B
    • Capacity (CFM) @ 150/175 PSI
      35 CFM @ 175 PSI
    • Compressor Style
      Splash Lubricated
    • Controls
      Start/Stop Operation (Head Unloaders are Standard)
    • Cooling Type
      Air Cooled
    • Flywheel
      Included
    • Flywheel Size
      19"
    • Horsepower (HP)
      7.5 - 10 HP (Electric)
    • Max Pressure (PSI)
      175 PSI
    • Number of Belts
      2
    • Number of Cyclinders
      4
    • Operating Pressure (PSI)
      145 - 175 PSI
    • Pump RPM
      730 RPM
    • Pump Type
      Splash Lubricated
    • Rated Duty Cycle
      70%
    • Recommended Motor Pulley
      8.0" (Working as a 10 HP)
    • RPM
      10 HP @ 730 RPM
    • Stage
      2 Stage
  • Overview & Technical Details

    • Fluid Type
      30 wt, non-detergent
    • Recommended Use
      Great Replacement for Failed Pumps (All Brands)
  • Additional Features

    • Air Filtration Included
      Inlet Filter Silencer & Elements
  • Connection

    • Connection NPT
      1"
  • Warranty

    • Standard Warranty
      90 Day Limited Parts Warranty
